1. Introduction of ATC-REG BOARD
ATC-E17 is designed by AT-COM company to provide users with integrated utilities, with the ability to adjust the selected output voltage through "jumps select" on the board, users can easily select the desired voltage to use.
2. Schematic

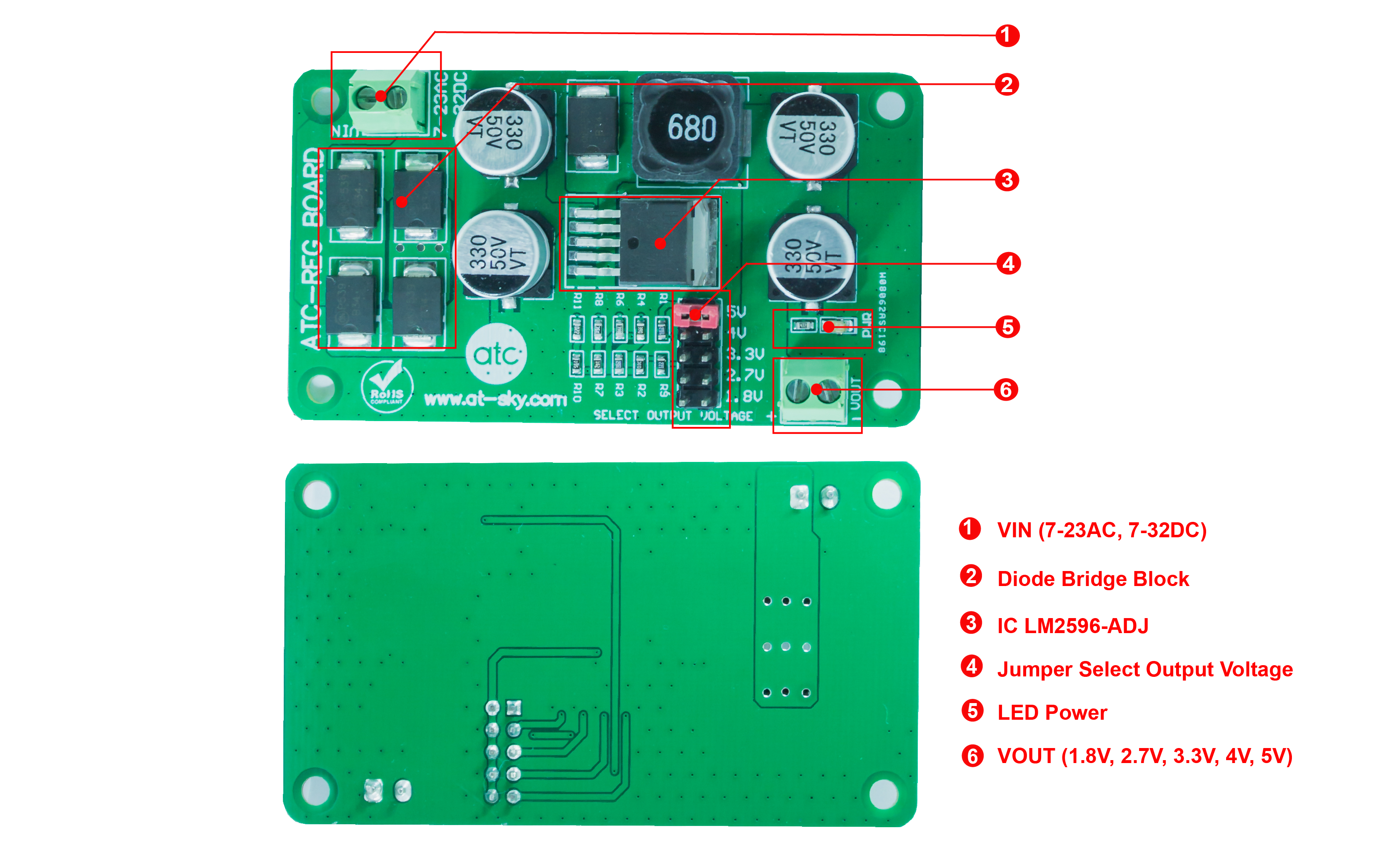

3. Feature of ATC-REG BOARD
Module ATC-E17
LM2596 STEP DOWN is a pulse source board that uses the LM2596-ADJ IC with up to 3A load current, 150KHz current response. This circuit board is ideal for projects that require switching from high to low AC (DC).
The board allows the input voltage 7-32V AC (or 9-32V AC), and stabilizes the output with 5 different voltage levels of 5V, 4V, 3.3V, 2.7V or 1.8V suitable for most ICs. microcontrollers, microprocessors, ... The output voltage is selected via a "select jumper" on the board
Diode Bridge Block
On board ATC-REG BOARD has been integrated a diode bridge block so that users can use both AC and DC input voltage.
Jumper Select Output Voltage
The board is integrated with a jumper that allows users to enable users to choose the output voltage: 5V, 4V, 3.3V, 2.7V, 1.8V to be compatible with the desired voltage.

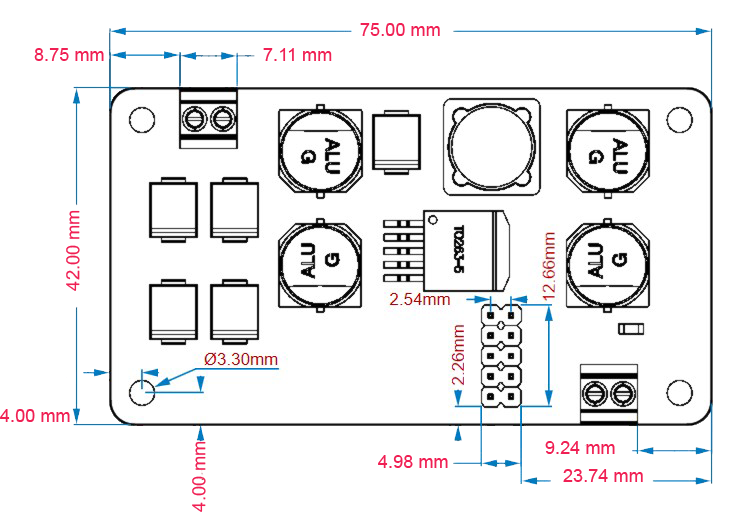

4. Dimension
5. Video demo
